HKSTUDIE – Coilover Kit with Suspension Error Canceller for BMW M3 / M4 G80 / G82

Original price was: ₹519,999.00.Current price is: ₹504,000.00.
Product on sale: Sale

Price includes GST

Available on backorder

Imported on order. Usually ships in 3–4 weeks.

Fits BMW M3 / M4 · G80 / G82Not your car? Check fitment

Coilover kit that balances high-speed stability with comfort for city driving. Fully threaded mono-tube dampers with 30-level damping adjustment, camber-adjustable front top hats and a Suspension Error Canceller included. 3-year / 60,000 km warranty.

Fitment is charged separately from the part price.
Product total
Options total
Grand total
Available on backorder

Genuine parts

Authorised channels, brand invoice

Fitment available

At our Greater Noida workshop

Pan-India shipping

Ask us for the current lead time

Description

HKSTUDIE Coilover Kit with Suspension Error Canceller

The G8X-generation BMW M comes with electronically adjustable dampers. They give the stability the M series is known for at high speed, but they can still feel stiff in daily driving, even in Comfort mode. HKSTUDIE developed this kit around one idea: balancing high-speed stability and comfort for city driving.

Highlights

  • Mono-tube dampers with a large-diameter piston, and inverted dampers at the front
  • Fully threaded body front and rear, so ride height is set without changing ride comfort
  • 30-level damping force adjustment for everything from city driving to the track

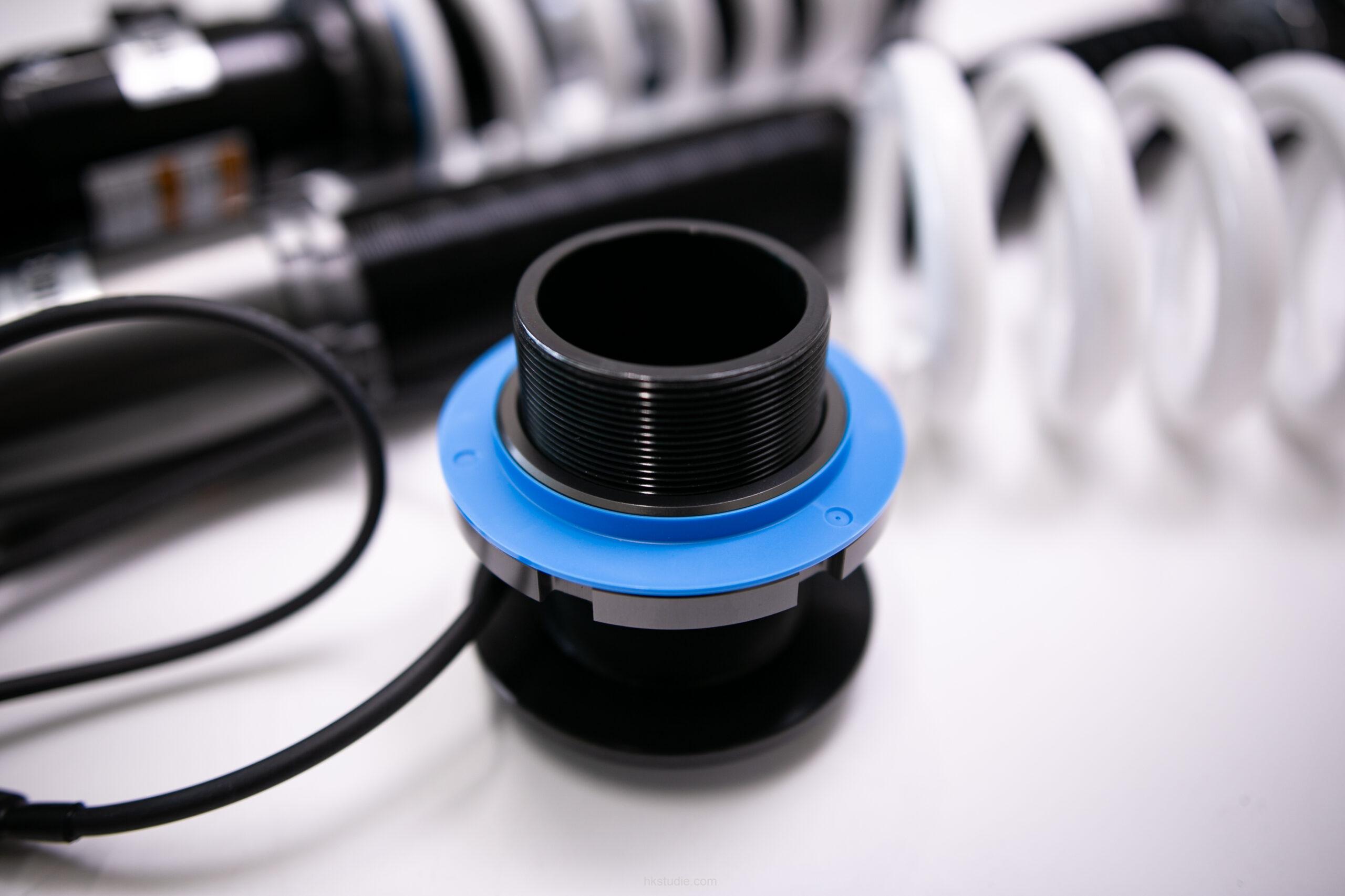

  • Camber-adjustable spherical-bearing top hats at the front and CNC machined aluminium top hats at the rear
  • Suspension Error Canceller included to clear the error light once the electronic dampers are removed
  • 3-year / 60,000 km warranty, with overhaul and customisation available after use
  • Front spring rate can be changed free of charge when you place the order

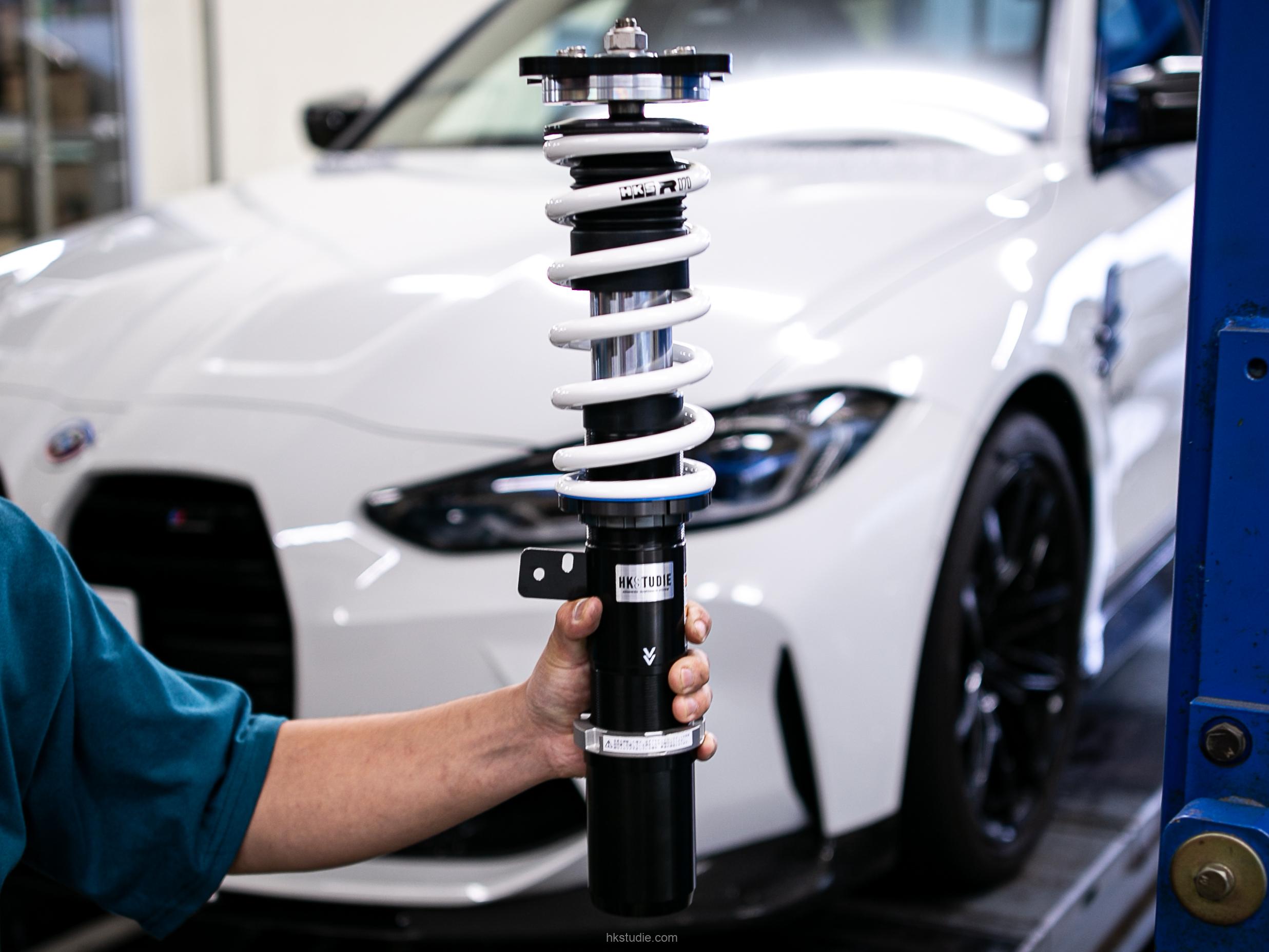

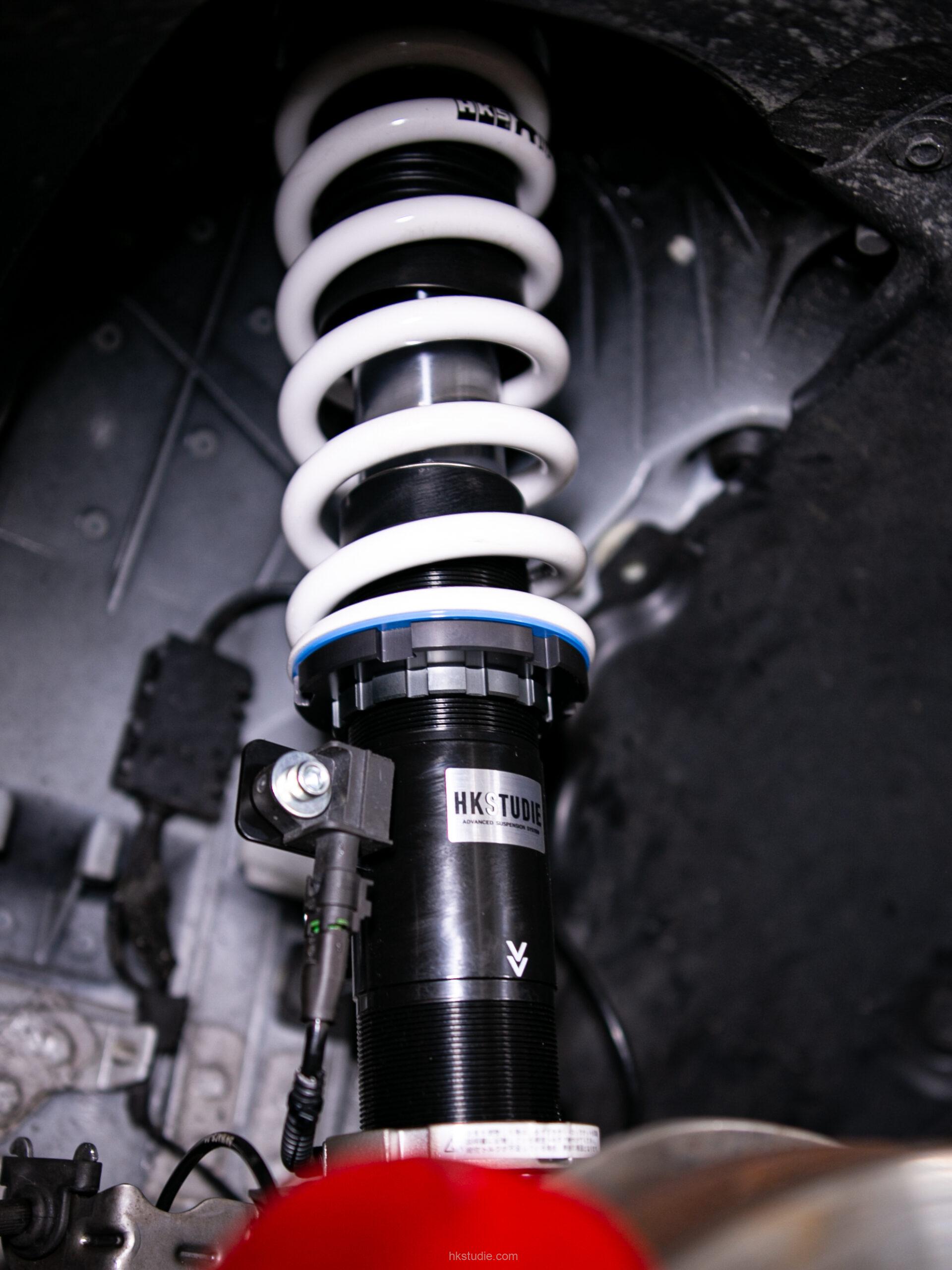

HKSTUDIE coilover kit for BMW M3 M4 G80 G82HKSTUDIE coilover kit installed components

Design & Construction

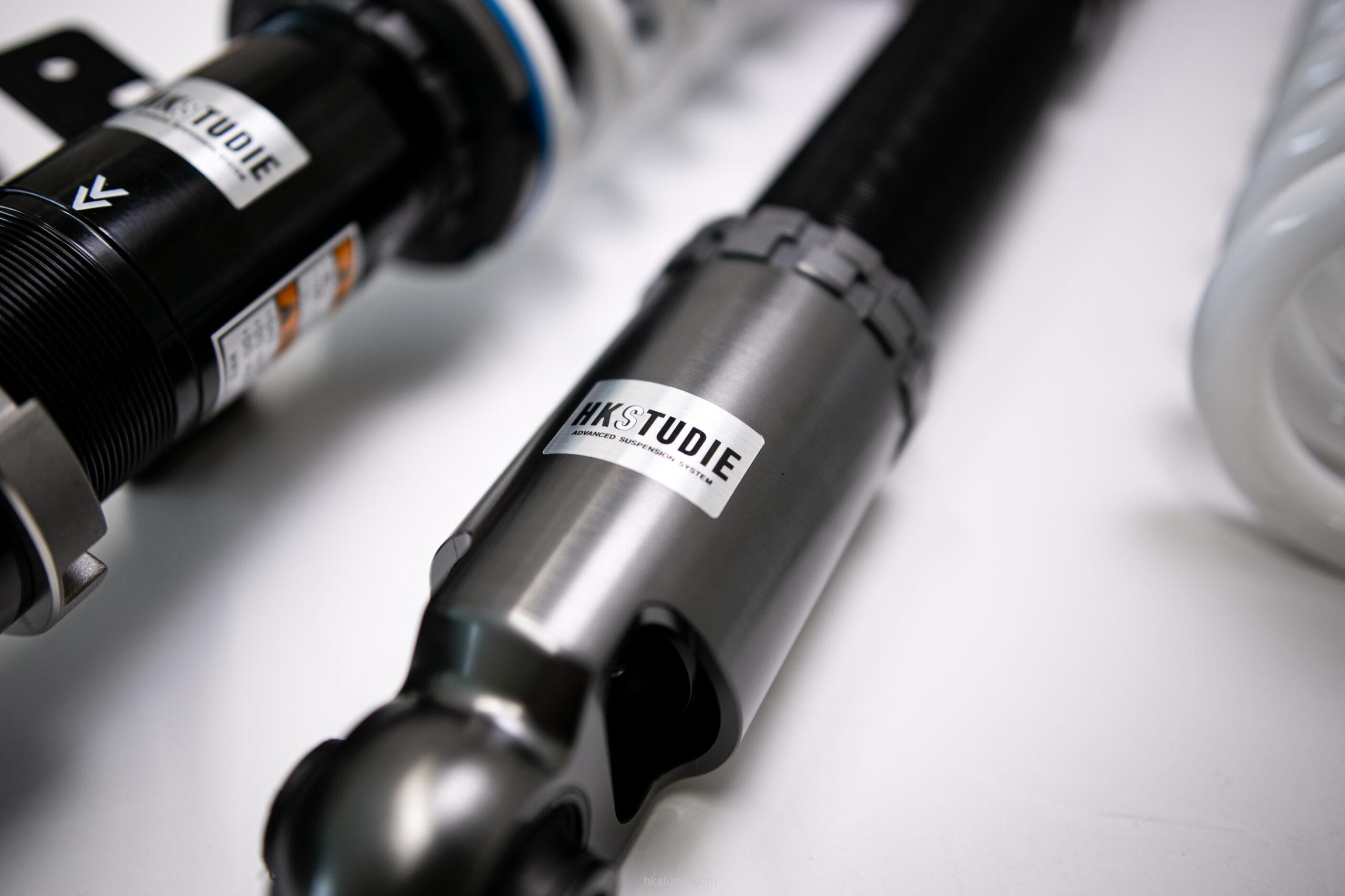

Mono-tube, inverted dampers

Mono-tube dampers allow a large-diameter piston and give high-quality, stable damping force. The front uses high-rigidity inverted dampers, because a strut-type front suspension takes heavy bending loads under acceleration, braking and cornering. The result is excellent handling.

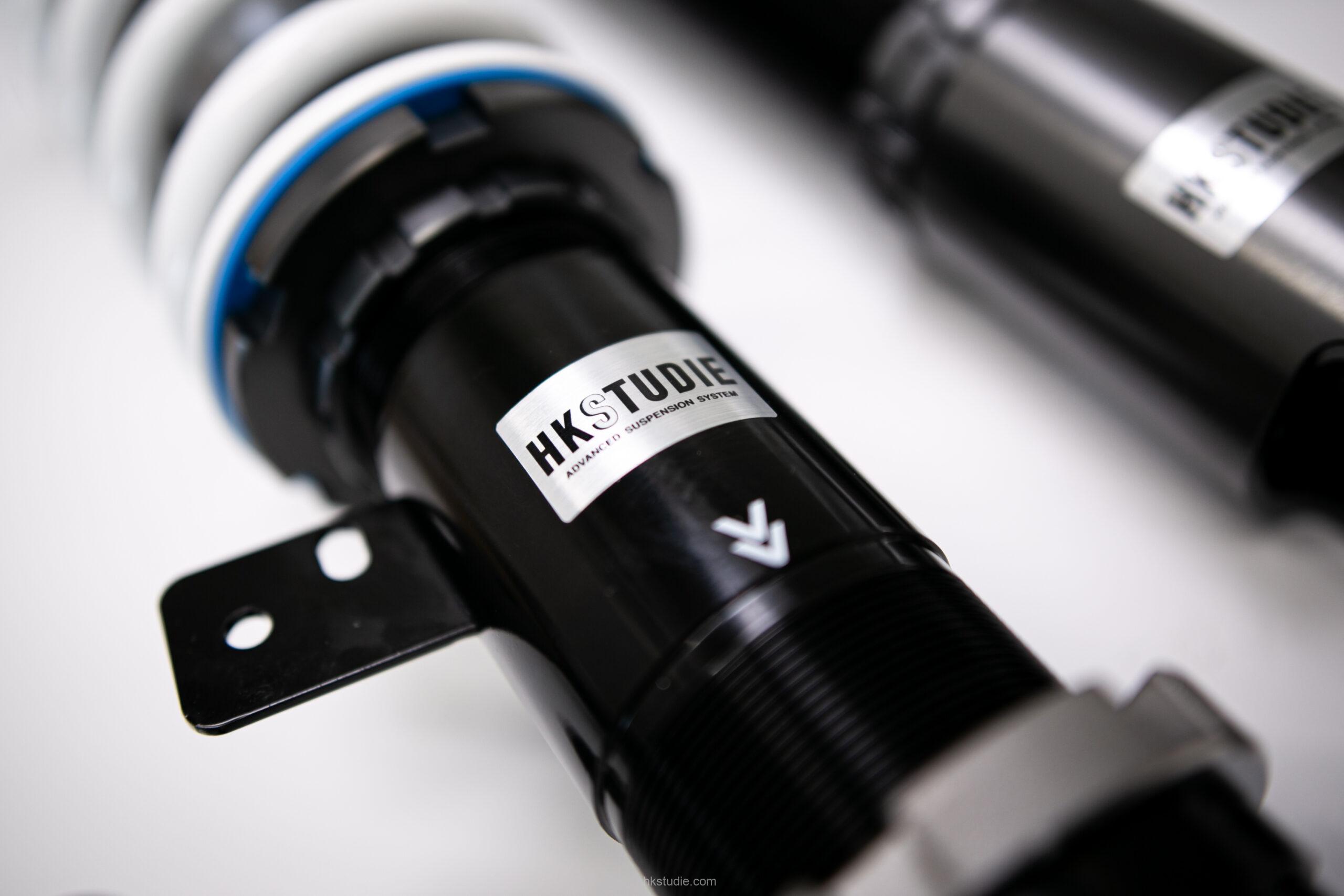

Fully threaded shock body

The fully threaded body at the front and rear lets you set the ride height you want without changing damper stroke or spring pre-load, so ride comfort is not affected. The stock wheel gap between tyre and fender is large, so the front is set slightly lower than the rear for a better stance and better high-speed stability.

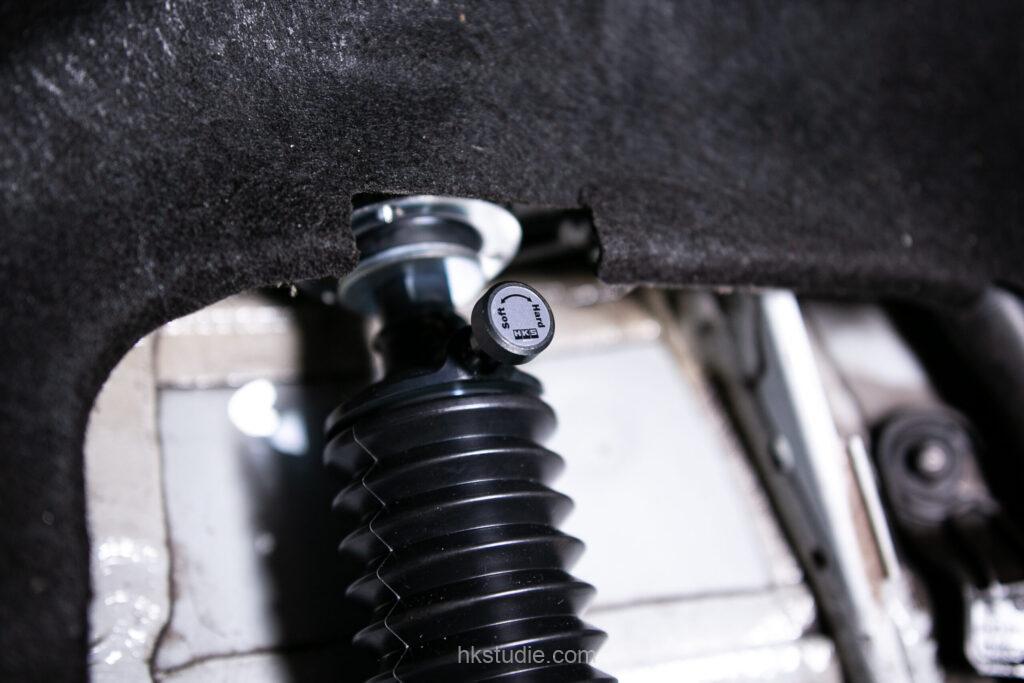

30-level damping adjustment

Set the damping force that suits the road, from city driving to the track. Front and rear each have an adjustment dial.

Front damping force adjustment dialRear damping force adjustment dial

Shown in order: front damping adjustment dial, then rear.

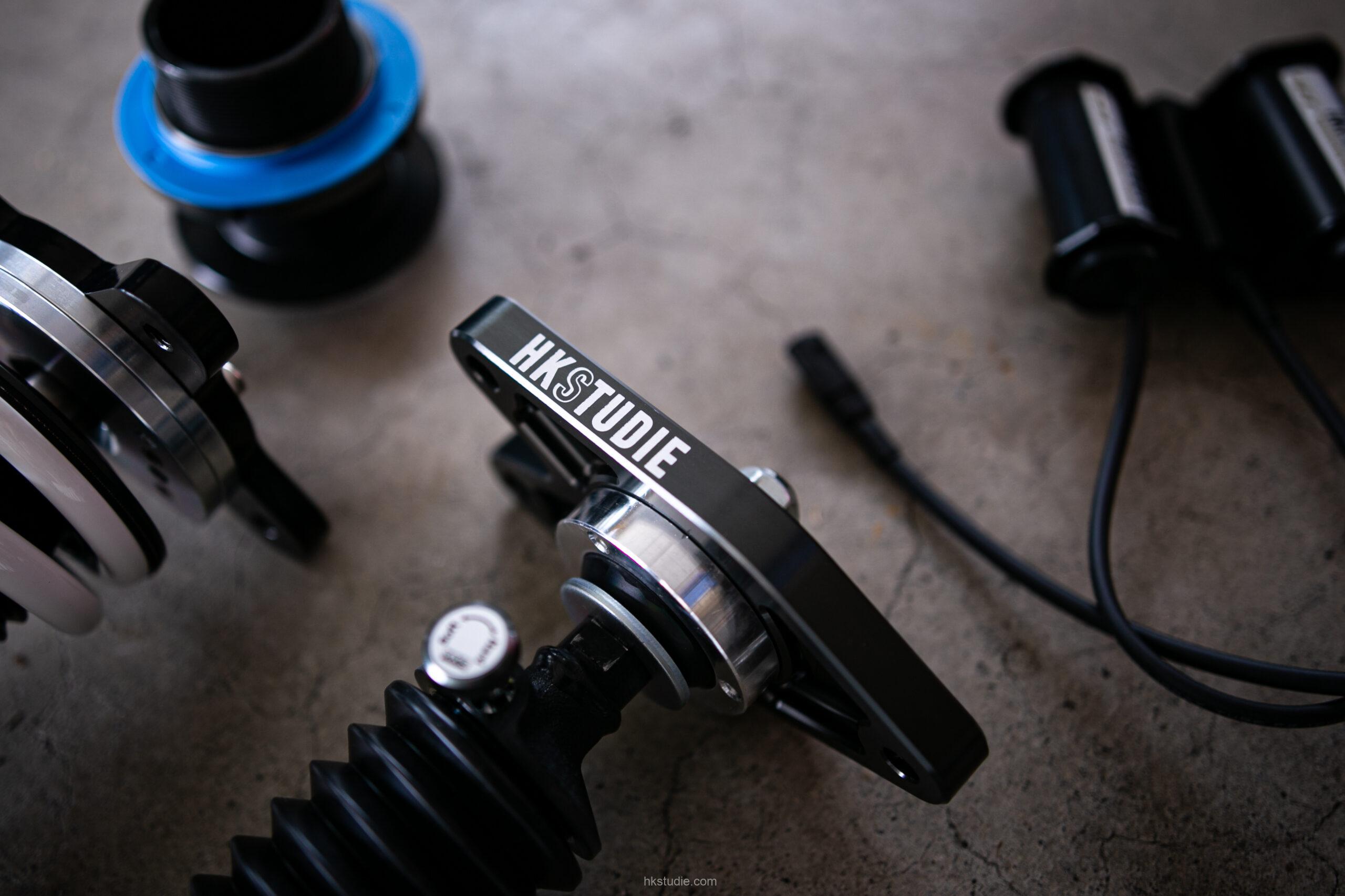

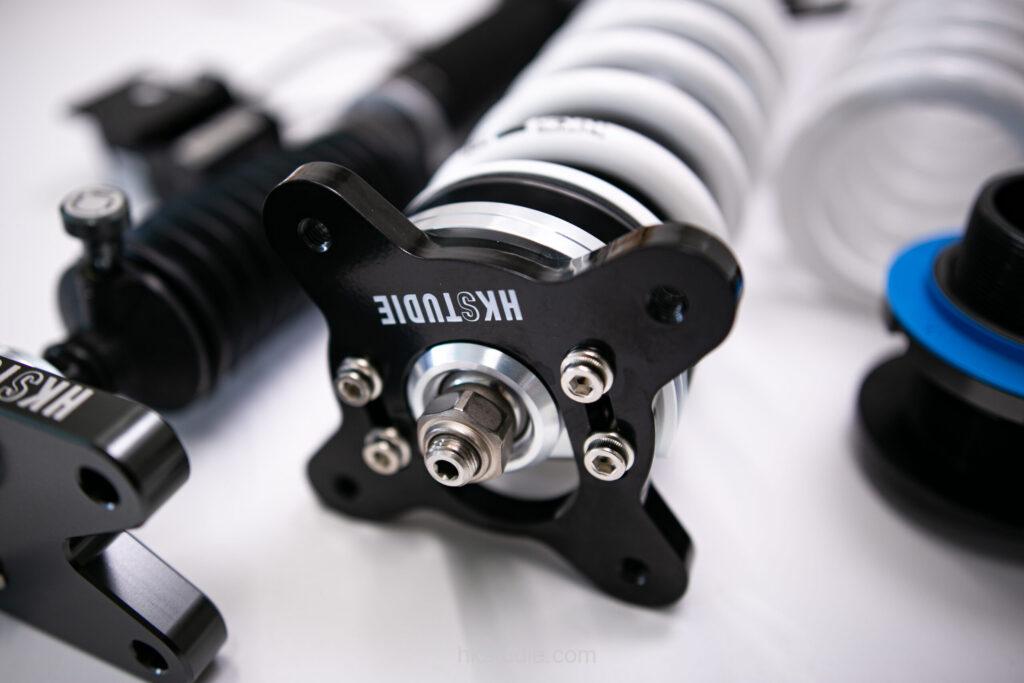

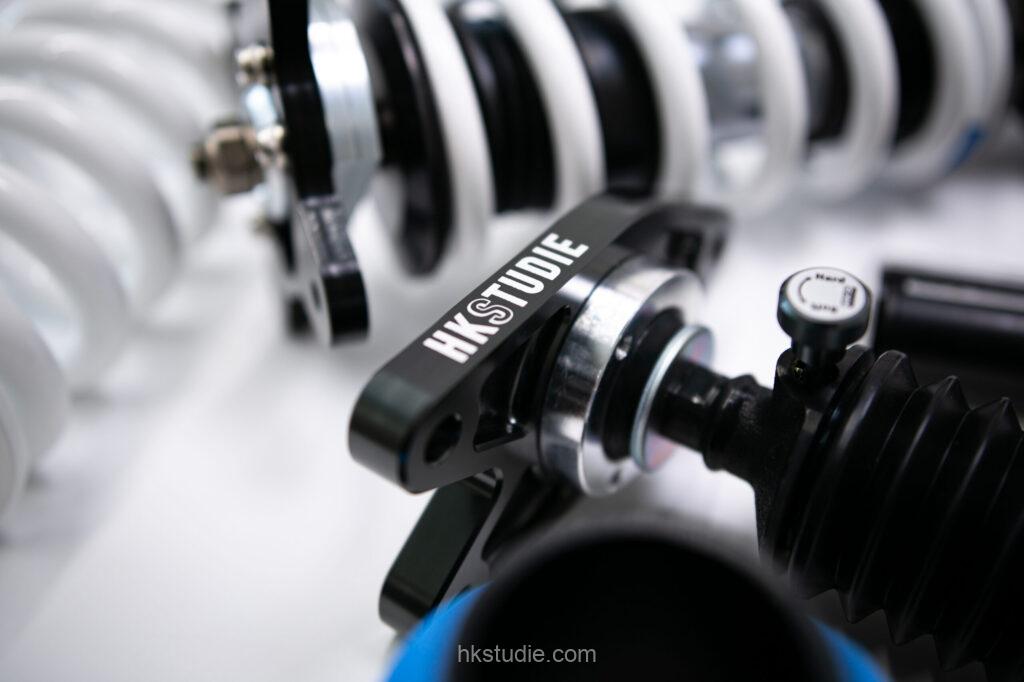

Top hats

The front uses camber-adjustable spherical-bearing top hats for sharp handling. The rear uses CNC machined aluminium top hats.

Front camber-adjustable spherical-bearing top hatRear CNC machined aluminium top hat

Shown in order: front top hat, then rear.

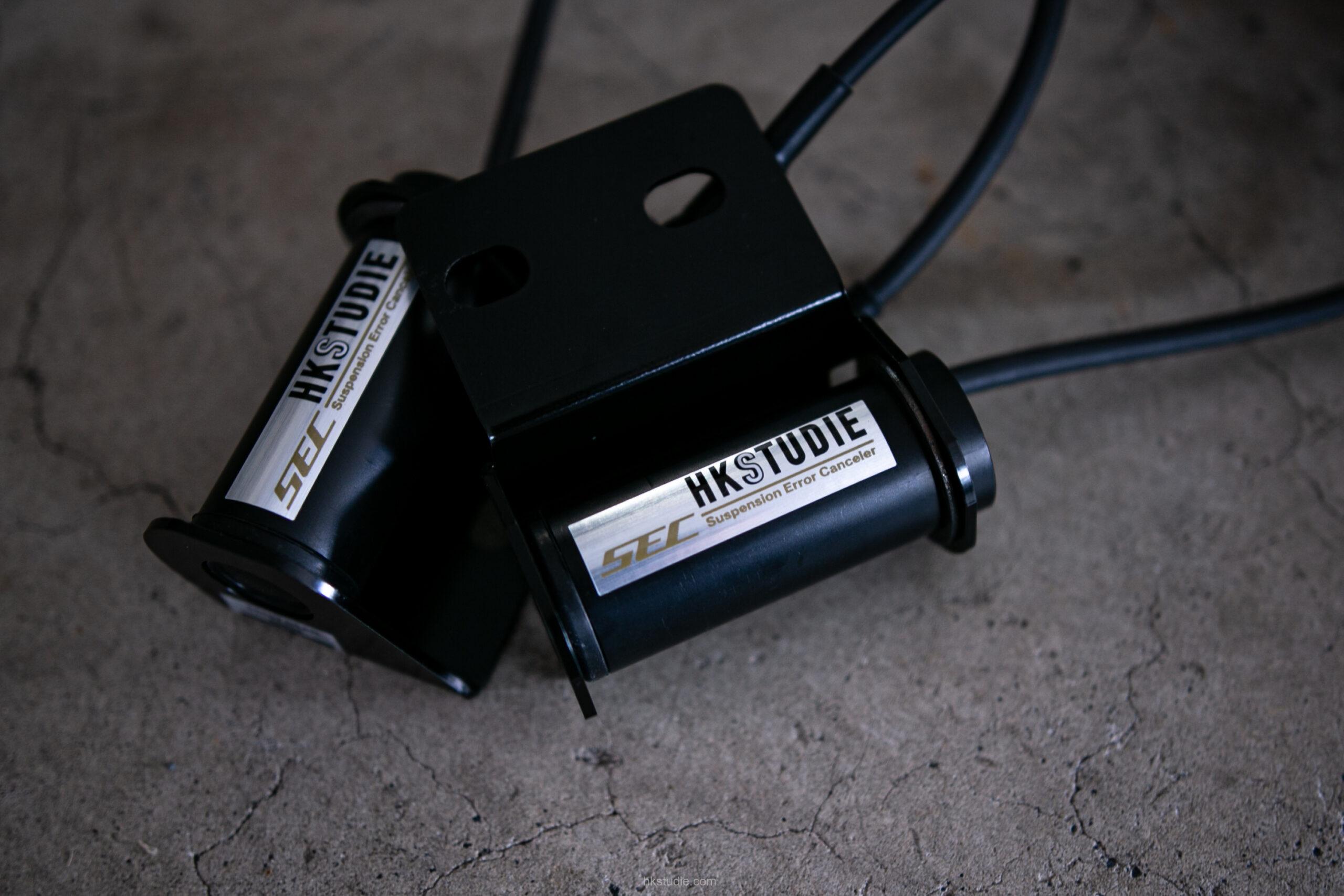

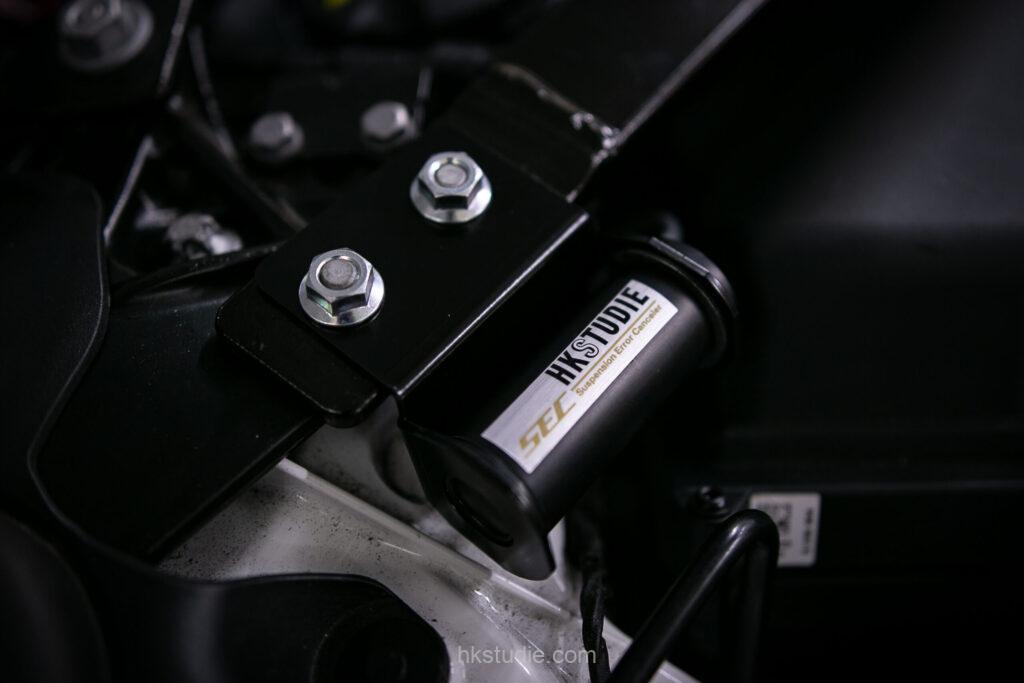

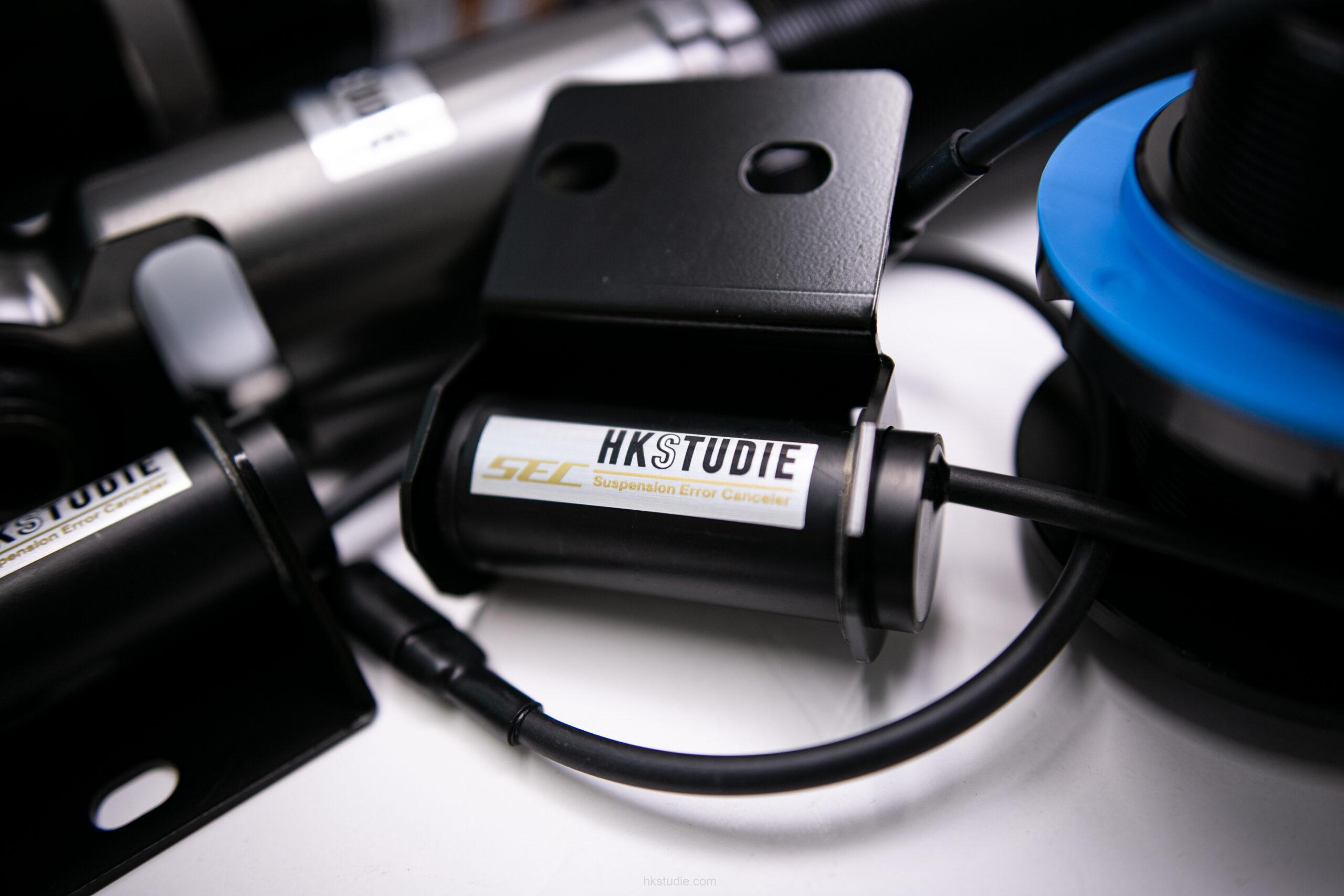

Suspension Error Canceller

Removing the electrically adjustable dampers triggers an error light. The kit includes a Suspension Error Canceller to clear it.

Suspension Error Canceller

Technology

Dual PVS (dual preload valve system)

A normal piston valve gives little damping force at low piston speed and more at high speed. Dual PVS raises damping force at low speed and holds it down at high speed. HKSTUDIE says this means less thrust and bouncing and better tyre traction.

Dual PVS piston valveDual PVS preload valveDamping force against piston speed: general piston valve against Dual PVS

Shown in order: valve images, then the damping force curve for a general piston valve against Dual PVS.

Advanced bump rubber

A typical bump stop rubber stops the stroke when the suspension bottoms out, but it also gives a strong impact. HKSTUDIE’s advanced bump rubber is soft and long, so it starts working earlier and acts as a sub-spring. That softens the impact at full compression and raises the overall spring rate through the stroke.

New advanced bump rubberConventional bump rubberSpring rate against stroke with the advanced bump rubber

Shown in order: new advanced bump rubber, conventional rubber, then the spring rate curve.

Ride comparison

HKSTUDIE’s own comparison against the stock setup, with the exploded view of the kit.

HKSTUDIE coilover exploded view and ride comparison with stock

Specifications

Brand HKSTUDIE
Fits BMW M3 / M4 G80 / G82
Damper type Mono-tube; inverted at the front
Damping adjustment 30 levels
Spring rate Front 69 N/mm (7.0 kgf/mm) · Rear 137 N/mm (14.0 kgf/mm)
Spring length Front 200 mm (straight) · Rear 250 mm (straight)
Default ride height (mm) Front -18 (upper limit -3 / lower limit -40) · Rear -9 (upper limit 0 / lower limit -36)
Upper mount Front spherical bearing · Rear spherical bearing (as listed by HKSTUDIE)
Optional springs Front: available (straight 8k or 6k) · Rear: not available
Included Suspension Error Canceller
Warranty 3 years / 60,000 km from purchase; overhaul and customisation available after use

Fitment & Install

This kit is made for the BMW M3 / M4 G80 / G82 with the stock electrically adjustable dampers.

  • The Suspension Error Canceller is in the box, so the error light does not come on after the electronic dampers are removed
  • Front spring rate can be changed free of charge when you order. Tell us which rate you want when you place the order
  • Imported on order. Usually ships in 3 to 4 weeks
  • Changing ride height or camber needs a wheel alignment afterwards
  • Fitment and alignment available at our Greater Noida workshop
  • Not sure it fits your car? Ask us on WhatsApp before you order
